  • Brand:
  • product name:C21DX Ultrasonic Pyramid Tea Bag Packing Machine with outer Envelope
  • Please contact us for product details and price    Miss Xu   13306032206  2581496060@qq.com



    Application:

    It is suitable for inner pyramid bag with outer envelope, and for packing multi-material product such as Coffee Powder, loose leaf tea, herbal tea, health care tea, TieGuanYin, Longjing, DaMaoFeng, DaHongPao, Rose tea, Ginseng, etc.



    Feature:

    1. It can make inner and outer bag automatically, which would highly improve the working efficiency.

    2. Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.

    3. Adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

    4. All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.

    5. The packing material of triangle bag is nylon, non-woven fabric material imported from japan, and it is non-toxic, no bacteria, heat-resistant high quality food grade material.

    6. The machine adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

    7. Optional devices: date printer.

    Technical data

    Type:

    Tea Bag Packing Machine Series

    Product model:

    C21DX

    Product name:

    Automatic Pyramid Tea Bag Packing Machine with outer envelope

    Packing Material:

    Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material.

    Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film

    Filling range:

    1~10g/bag, accuracy:≦±0.1g/bag

    Filling method:

    Electric scale

    Packing roll width:

    140mm, 160mm, 180mm

    Sealing length:

    50, 60, 70, 80mm

    Outer bag size

    W: 80-100mm; L: 90-120mm

    Sealing method:

    Inner Pyramid Bag by ultrasonic sealing and cutting

    Bag type:

    Inner pyramid bag with outer envelope

    Quantity of sealing device:

    2 sets

    Packing speed:

    30-60 bags/min

    Motor Power:

    380V, 50HZ, 1.5KW

    Air supply:

    ≧0.6Mpa (Can be equipped with air compressor)

    Weight:

    500KG

    Dimension:

    3000*900*2300mm(L*W*H)

C20 Inner Pyramid Tea Bag Packing Machine Ultrasonic Sealing

C20 Inner Pyramid Tea Bag Packing Machine Ultrasonic Sealing

Xiamen Sengong Packing Equipment Co., Ltd

DetailsSend Inquiry

C19D Drip Coffee Bag Packing Machine with outer Envelope

C19D Drip Coffee Bag Packing Machine with outer Envelope

Xiamen Sengong Packing Equipment Co., Ltd

DetailsSend Inquiry

C19II Heat Sealing Drip Coffee Packing Machine

C19II Heat Sealing Drip Coffee Packing Machine

Xiamen Sengong Packing Equipment Co., Ltd

DetailsSend Inquiry

G74K Automatic Granules Packing Machine with 4 lanes

G74K Automatic Granules Packing Machine with 4 lanes

Xiamen Sengong Packing Equipment Co., Ltd

DetailsSend Inquiry

T60DX Automatic Packing Machine with Electric Weigher

T60DX Automatic Packing Machine with Electric Weigher

Xiamen Sengong Packing Equipment Co., Ltd

DetailsSend Inquiry

T50F Single Bag Packing Machine for Powder

T50F Single Bag Packing Machine for Powder

Xiamen Sengong Packing Equipment Co., Ltd

DetailsSend Inquiry

C16F Inner Tea Bag Packing Machine with outer bag

C16F Inner Tea Bag Packing Machine with outer bag

Xiamen Sengong Packing Equipment Co., Ltd

DetailsSend Inquiry

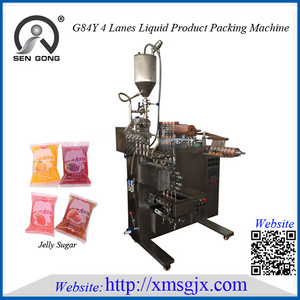

G84Y 4 Lanes Liquid Products Packing Machine
